Researchers have combined various X-ray imaging technologies to create multi-contrast images that can be used to detect threatening materials such as explosives in thousands of complicated scenarios. The new approach, which also leverages readily available machine learning procedures for materials classification, could be useful for security screening as well as applications in the life and physical sciences.
“This method is particularly well suited to discriminating objects with very similar elemental composition,” said research team leader Thomas Partridge from University College London in the UK. “It could be used in airport security or any inline scanning operation to examine materials flagged as suspicious by an initial fast scan such as a traditional X-ray system.”
In the journal Optica, the researchers show that the new approach was highly effective in accurately detecting and identifying explosives in almost 4,000 scans of threatening and non-threatening materials hidden inside bags or obscured by various types of objects. They achieved a near-perfect recall rate of 99.68%, with just one false negative, from the threat-bearing cases.
“Although more work is needed, this approach could also prove useful for medical imaging,” said Partridge. “While traditional X-ray imaging struggles to separate healthy from diseased tissue, other studies have suggested that phase contrast imaging might be able to capture textures that could be used to distinguish healthy and benign tissues.”
Unlocking material secrets

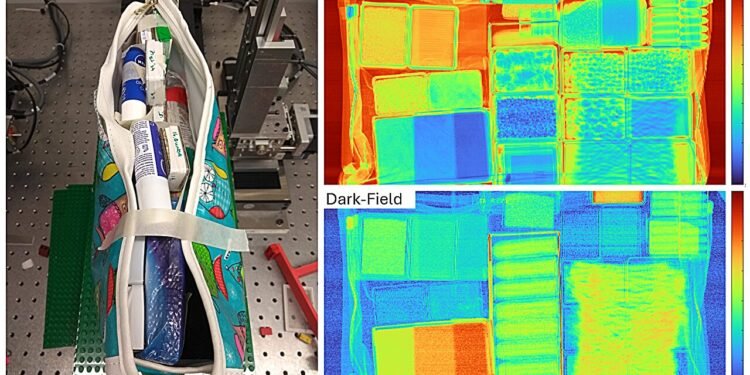

The X-ray machines found in airports or medical facilities are based on X-ray attenuation, which images the reduction in intensity in X-rays after they pass through a material. The new technique creates multi-contrast images by combining conventional X-ray attenuation data at various X-ray energies with X-ray phase information, which consists of refraction and dark-field channels.
“Many explosives and common everyday items are composed of primarily carbon, hydrogen, nitrogen and oxygen, a similarity that makes them difficult to separate with X-ray attenuation alone,” said Partridge.
“The additional channels offer significantly better enhancement of edges as well as textures and grains of materials, allowing the discrimination of objects with very similar elemental compositions.”
This work builds on previous efforts by the researchers to use multi-contrast X-ray phase enhanced imaging with machine learning approaches for threat detection with a smaller number of explosives and benign objects.
In the new experiment, they significantly scaled up the number of materials investigated and the number of imaging scenarios to better mimic real world situations. They also created a more effective scanning system with a resolution that could be changed by modifying the scanning speed and applied edge illumination phase contrast.
Edge illumination involves placing masks before and after the sample to create the sub-pixel X-ray “beamlets” needed to make the system sensitive to phase signals. One key advantage of this illumination approach is that it works with incoherent X-ray sources, widening its applicability.
Since the increased complexity of the imaging scenarios required more sophisticated protocols, the researchers applied machine learning with a hierarchical architecture that separated the cluttering objects before distinguishing material types. This made it possible to rapidly discern subtle differences in shapes and textures to distinguish materials based on key identifying features.
Detecting threats
To test the new technique, they used 19 threat materials and 56 non-threat materials, all at three thicknesses and obscured by a range of cluttering objects such as brushes, facewipes, socks and other items passengers would have in a carry-on bag.
By using all the acquired contrast channels, the researchers demonstrated not just material discrimination but identification in some cases. Using deep learning to analyze the signals from the combination of X-ray contrasts provided very promising results, with just a single miss out of 313 threat cases.
The researchers say that translating this approach to a commercial setting would require improving the scanning speed through further optimization of the system. The robustness of material discrimination also needs to be tested on a larger set of data.
One area of active study for the team is combining the method with 3D computed tomography scanning, which is being explored for security purposes because of its ability to provide detailed, three-dimensional images of objects.
More information:
Tom Partridge et al, Multi-contrast x-ray identification of inhomogeneous materials and their discrimination through deep learning approaches, Optica (2024). DOI: 10.1364/OPTICA.507049
